• All automatic digital display system of output watt facilities confirmation of user power.
• Equipped with automatic visual & acoustic monitoring & warning system,the power output is automatically cut off in any interruption
• Cutting power and coagulating power do not work at the same time.
• This can be hand or foot-operated.
• High frequency power is generated at the active electrode only, to obviate inadventent diathermy.
• Seven working modes.
• Double frequency output, wide range and constant power.
• Blend modes are designated low ang high.
• 300W power output, totally adapt to surgical operation.

Specification:

Monopole - Incision

Work Mode	Frequency	Rated Power	Wave
Pure Incision	400KHz	0-300W(400Ω)	Sine Wave
Mixed Incision I	400KHz	0-250W(400Ω)	Modulate Sine Wave
Mixed Incision II	400KHz	0-200W(400Ω)	Modulate Sine Wave

Monopole - Concreting

Work Mode	Frequency	Rated Power	Wave
Standard Concreting	400KHz	0-100W(400Ω)	Modulate Sine Wave
Jet Concreting	400KHz	0-80W(400Ω)	Modulate Sine Wave

Bipolar

Work Mode	Frequency	Rated Power	Wave
Dual Incision	400KHz	0-100W(50Ω)	Sine Wave
Dual Concreting	400KHz	0-70W(50Ω)	Modulate Sine Wave

Application:

Ordinary surgery, cardiology, urology, gynaecology, chest chirurgery, oncology

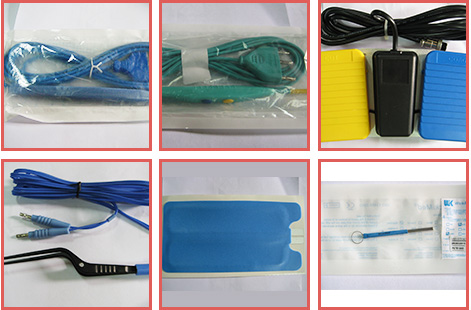

ACCESSORIES FULL FIT FOR THE INCISION
ANDMELTING OF THE PARENCHYMA
